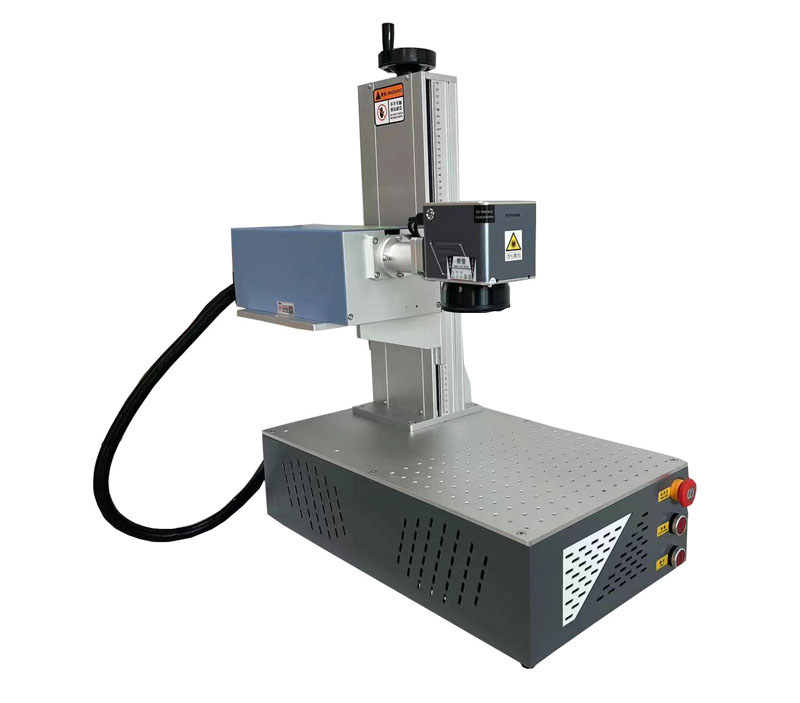

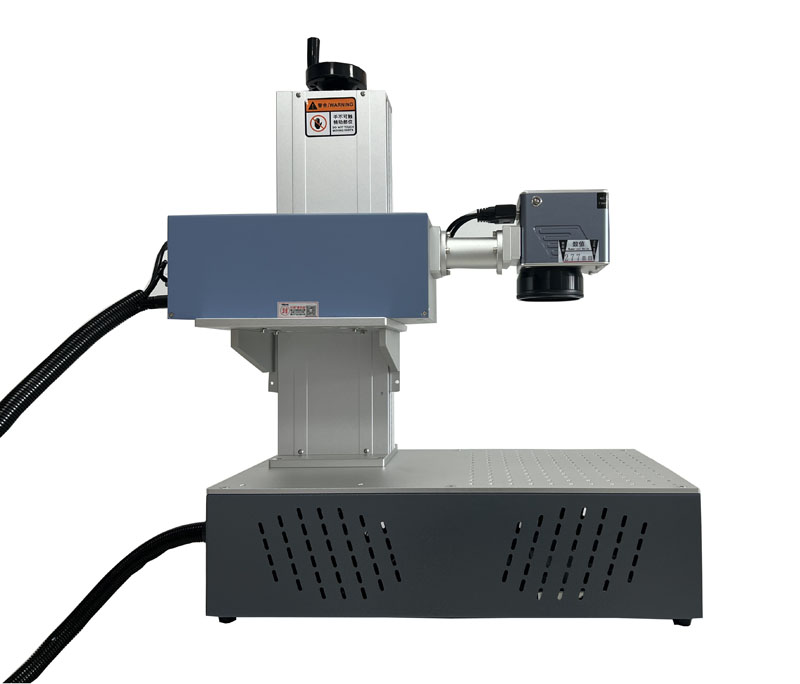

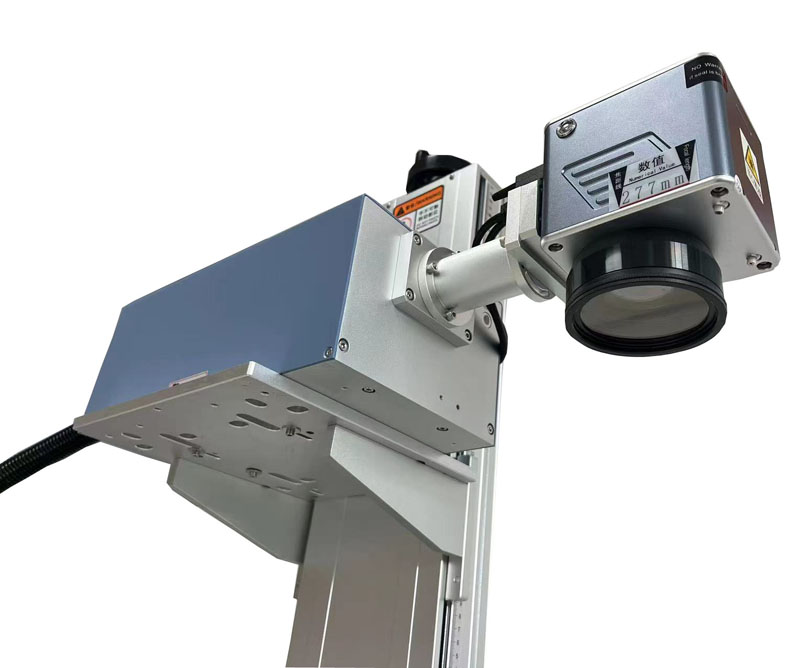

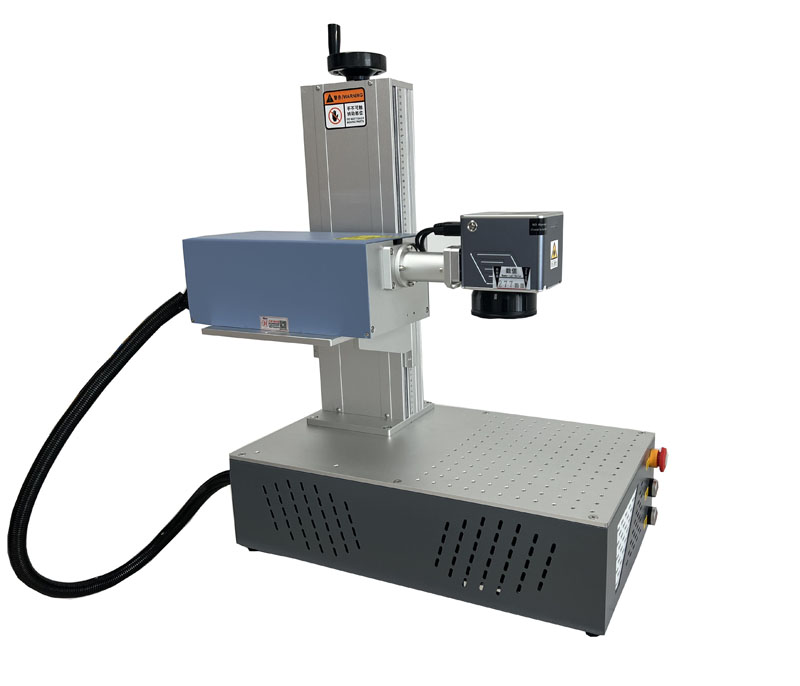

New Type 5W Huaray Water Cooling UV Laser Marking Machine
5W Huaray water cooling uv laser marking machine
New Type 5W Huaray Water Cooling UV Laser Marking Machine
Technical data
Model
Laser Source
Output Average Power
5W
Wave length
355nm
Beam Quality(M2)
≤1.2
Consumed power
≤500W
Control Card
JCZ original control card
Software
Ezcad software
Marking Area
110*110mm, 150*150mm
Max speed of galvo head
7000mm/sec
Frequency
30-150KHZ
Cooling system
Water cooling
Laser Class
Class 4
Marking Material
Plastic, metal,
Working Temperature
0-40℃
Net weight
75KG
Gross weight
90KG (Include water chiller)
WS-U5
HUARAY

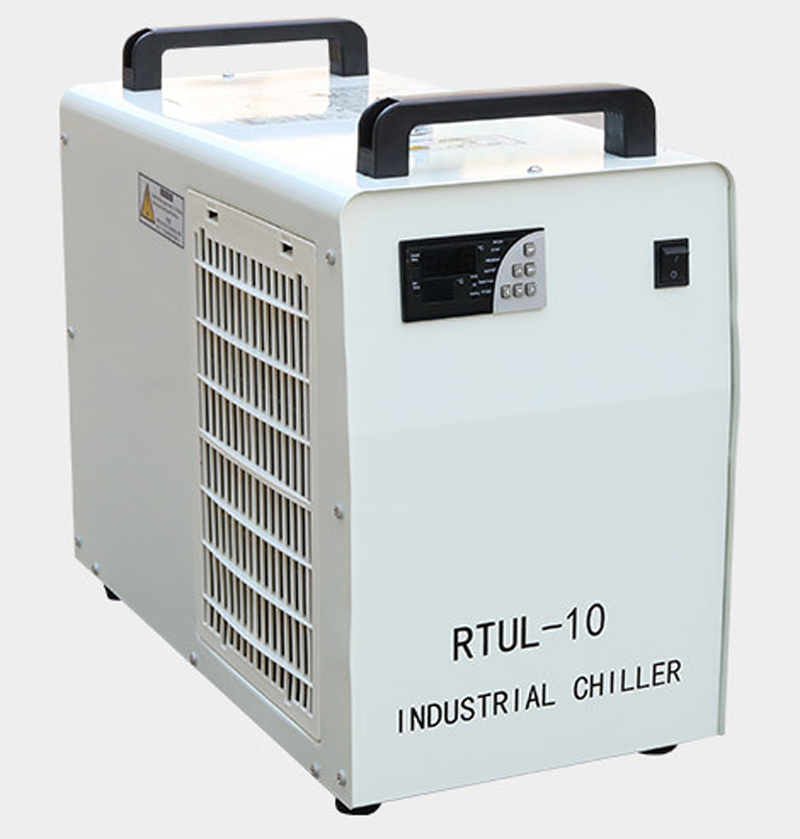

UV laser industrial chiller
Now 3W 5W UV laser marking machine have air cooling and water cooling, we often advise customer to choice the water cooling type, because the water cooling UV laser have longer lifespan than air cooling type.
We use the high quality industril chiller for our 3W 5W UV laser marking machine,

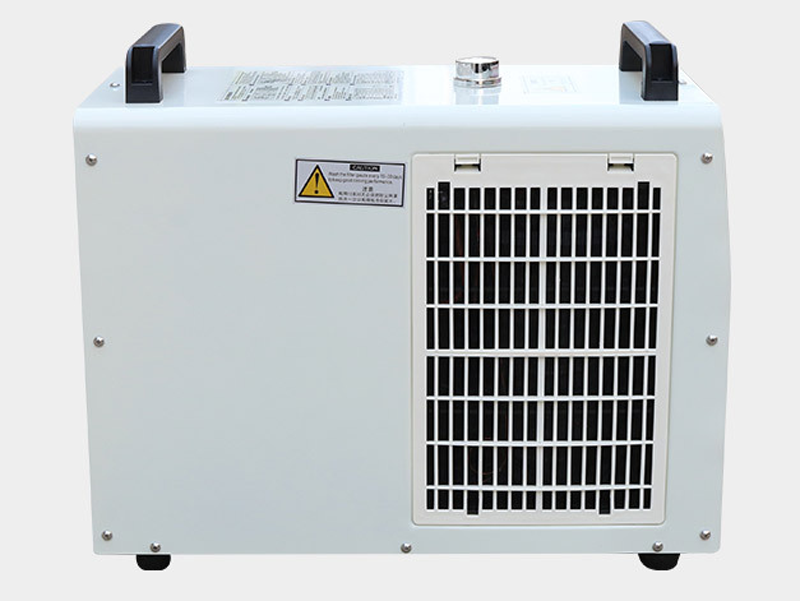

Chiller technical data
Power supply
220V±10%
Power Frequency
50HZ
Working current
0.25-2.3A
Cooling capacity
740W
Refrigerant
R134A
Temperature control accuracy
±0.3℃
Restrictor
Capillary restrictor
Water pump power
0.5KW
Tank capacity
6L
Water inlet and outlet
10mm Quick plug
Pump head
12 meter
Pump flow
19L/Minute
Net Weight
22kg
Gross weight
24kg
Chiller size
580*285*470mm
Package size
680*415*560mm
Application
UV laser marking machine can get better marking performance on plastic, wood and metal products than fiber laser marking machine. UV laser wavelength is 355nm, the UV laser can get less heat effect for marking material.
we manufacutre all kind of laser marking machine, laser welding machine, laser cutting machine
