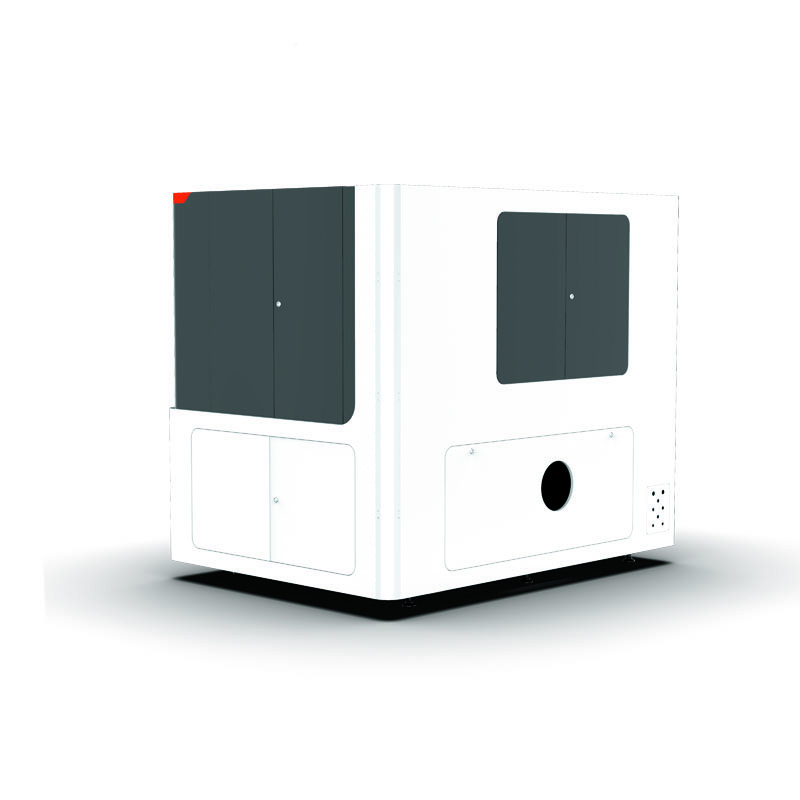

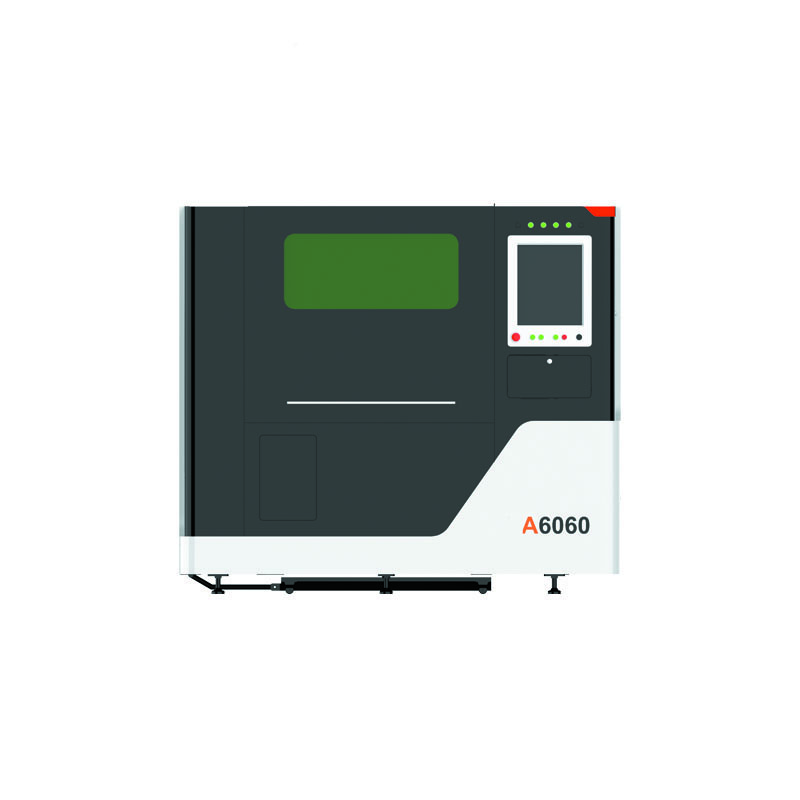

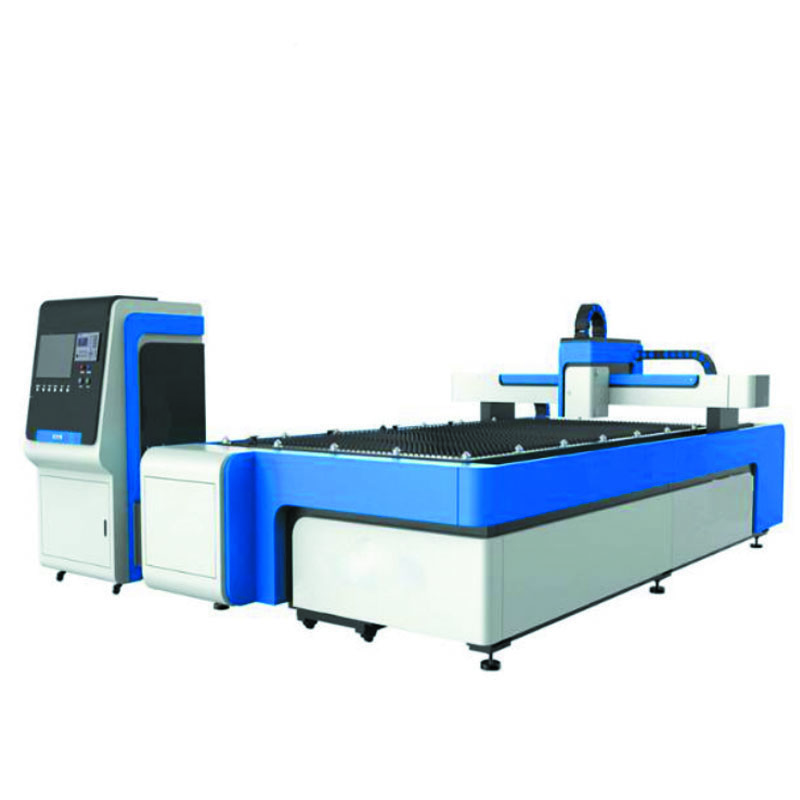

Laser Cutting Machine
Fiber Laesr Cutting Machine for metal material
Fiber Laesr Cutting Machine for metal
Technical data
Laser Type
Fiber Laser
Laser Brand
Raycus/MAX/JPT/IPG
Laser Wavelength
1064nm
Laser Power
500W/1000W/1500W/2000W/3000W/6000W/20000W
Working Table Structure
Fixed Working Table/Pallet Changer Working Table
Gantry Material
2nd generation cast aluminum
Max cutting scope
3000mm*1500mm
Cooling system
Water Cooling
Supported Format
PLT, DXF, BMP, AI, DST, DWG, etc....
X/Y axis positioning accuracy
±0.01mm/m
X/Y axis repeated positioning accuracy
±0.01mm
Maximum acceleration
0.5G
X axis range
3050mm
Y axis range
1525mm
Z axis range
120mm
Motor
Panasonic servo motor
Machine weight
1500KG
The table limit load weight
800KG
Power Supply Voltage
220V 50/60HZ
Power case protection level
IP54

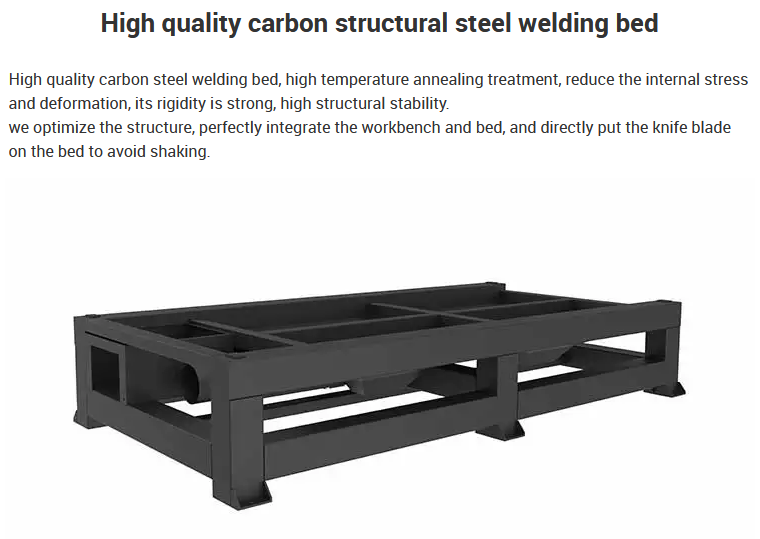

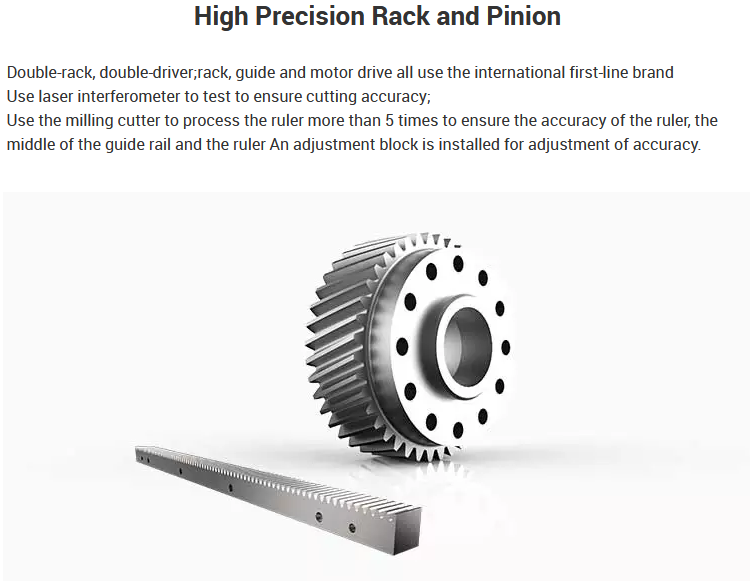

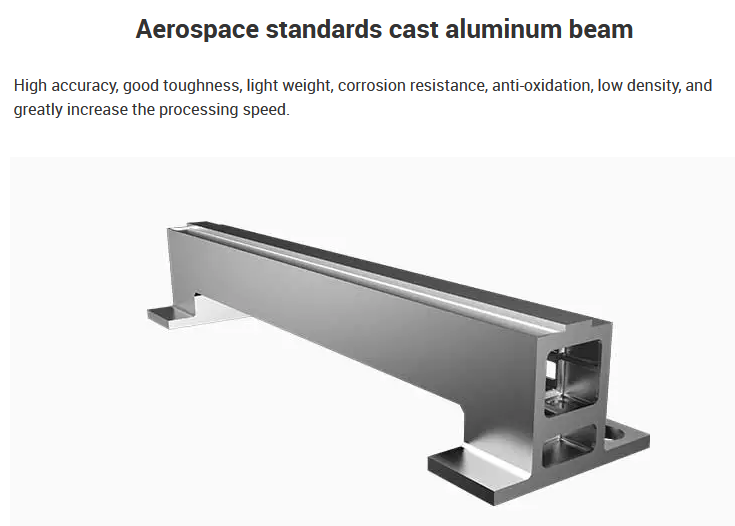

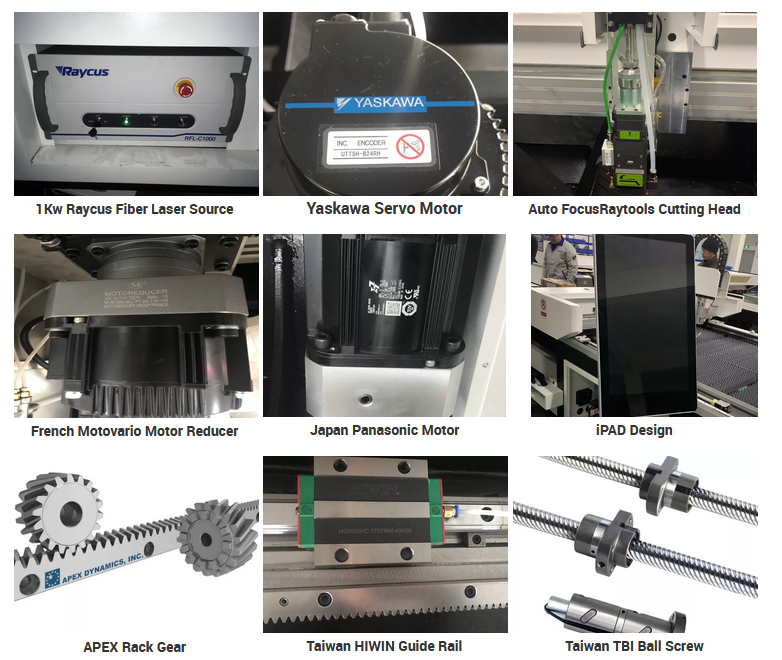

Laser Cutting Machine detail parts

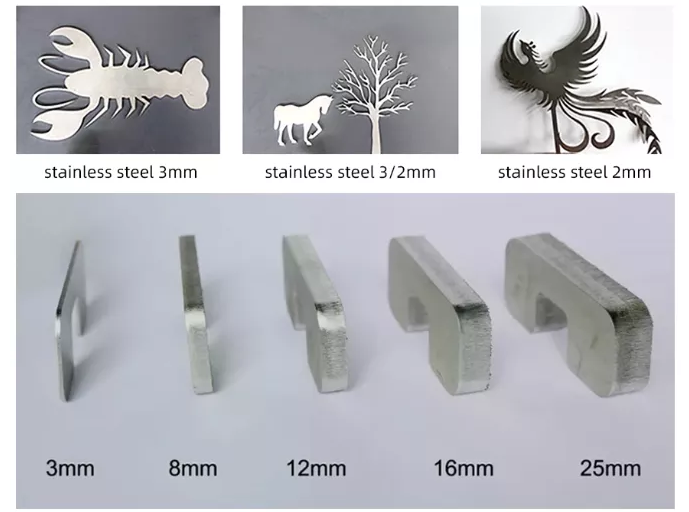

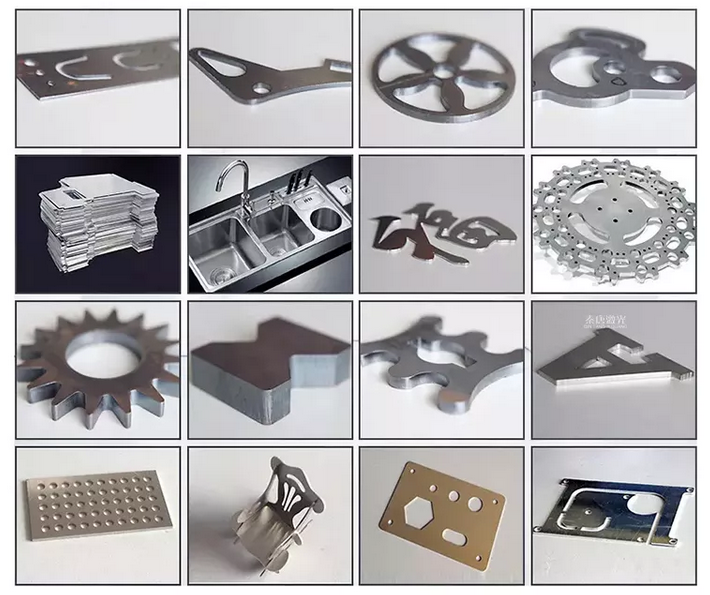

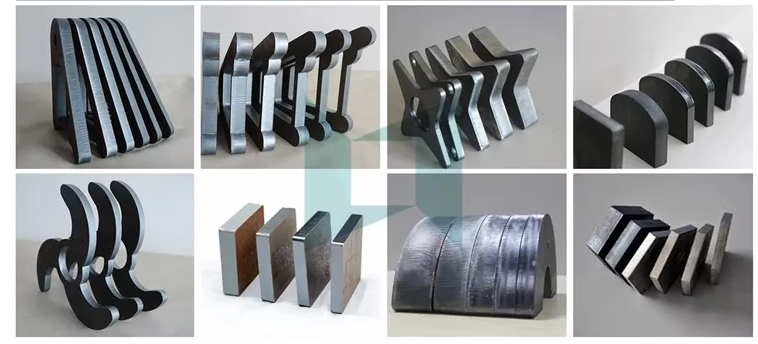

Laser Cutting Machine Application
we manufacutre all kind of laser marking machine, laser welding machine, laser cutting machine
