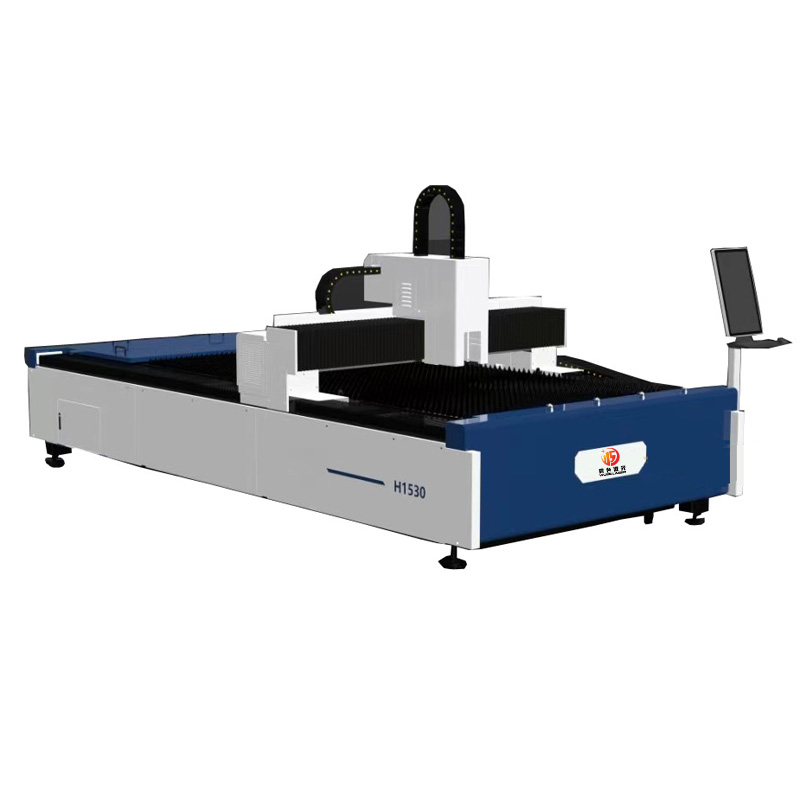

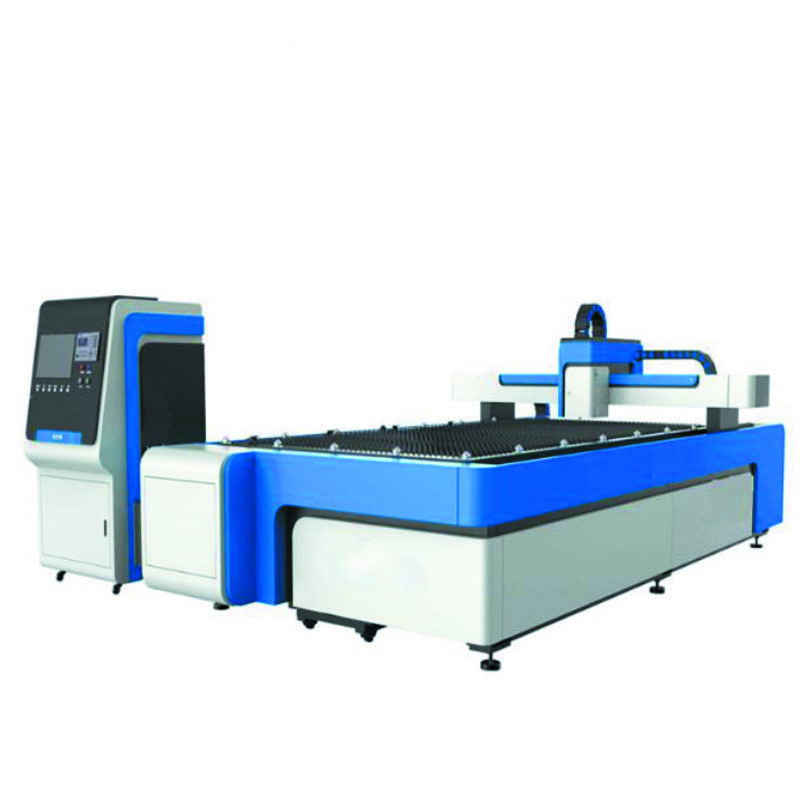

3015 3000W Fiber Laser Cutting Machine
3000W Fiber Laser Cutting Machine 3050*1550mm working area for cutting metal, copper, aluminum plate.......

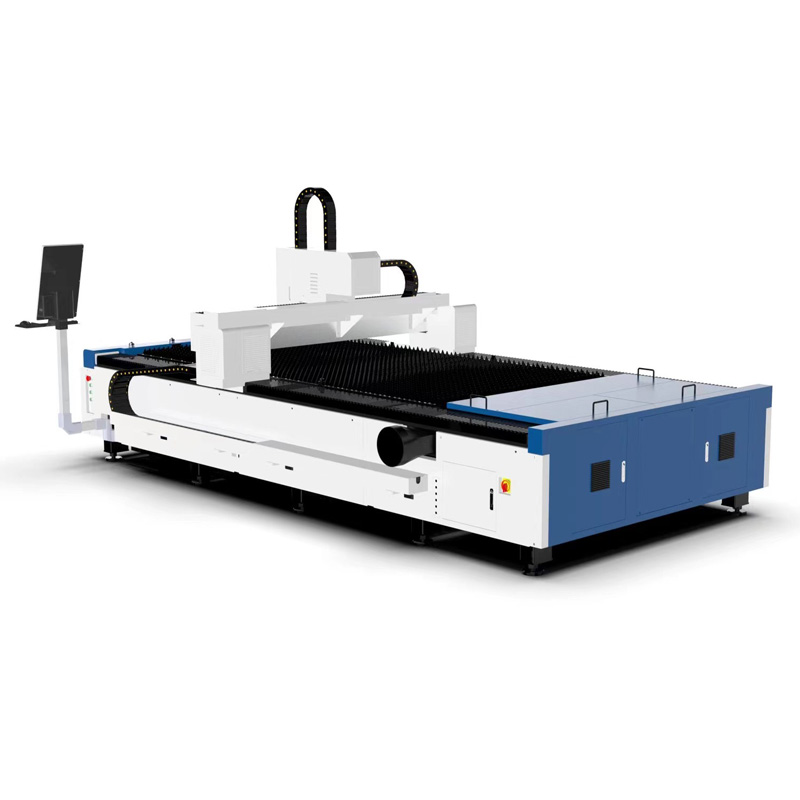

New 3015 3000W Fiber Laser Cutting Machine
Technical Data
|
Name |
Fiber Laser Cutting Machine |
||||
|
Model |
WS-H |
||||
|

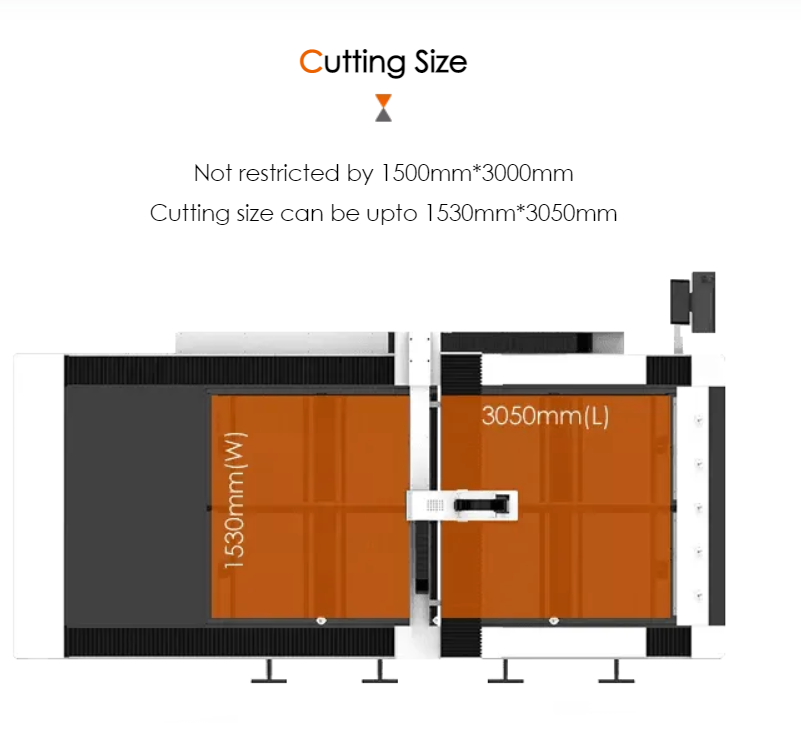

Working area |
1530×3050mm |
2030×4050mm |
2530×6050mm |
||
|
Max acceleration |
0.9G |
||||
|
Max speed |
90m/min |
||||
|
Laser source |
RECI / MAX |
||||
|
Laser power |
1500W/2000W/3000W |
||||
|
Laser Head |
Raytools / WSX |
||||
|
Function |
Laser Head Autofocus & Active Collision Prevention |
||||
|
Controller system |
Raytools software |
||||
|
Support format |
DXF / PLT / AI / DWG / LXD / Gerber |
||||
|
Compatible software |
Coreldraw / Autocad / AI |
||||
|
Configuration |
Gantry Type |
||||
|
Gantry Material |
Extruded Aviation Aluminum Corssbeam |
||||
|
Lead rail |
Taiwan LAAK |
||||
|
Gear rack |
Taiwan LAAK |
||||
|
Servo Motor |
VEICHI Servo Motor & Driver Three 1000W+ one 400W motor with brake |
||||
|
Reducer |
TAIFU / EREFAT |
||||
|
Position accuracy |
±0.03mm |
||||
|
Repeat accuracy |
±0.01mm |
||||
|
Electrical element |
Schneider |
||||
|
Gas path |
Aventics / Airtac |
||||
|
Cooling Mode |
Water Cooling |
||||
|
Chiller |
S&A chiller |
||||
|
Cutting Material |
Stainless steel, carbon steel,copper,aluminum..... |
||||
|
Cutting product |
Sheet Metal |
||||
|
Cutting thickness |
0-25mm |
||||
|
Warranty |
Core parts 3 years |
||||
|
Machine color |
Blue & white, customized |
||||
|
Power supply |
3 phase 380V, 50HZ / 60HZ (customized) |
||||
|
Weight |
1900KG |
2900KG |
3900KG |
||
|
Size(mm) |
4630*2255*1900 |
5910*2780*2000 |
7930*3280*2000 |
||
|
Air compressor |
7.5KW-15KW (optional) |
||||
|
Voltage regulator |
30KVA-50KVA (optional) |
||||
|
Dust cleaning |
5.5KW-7.5KW (optional) |
||||

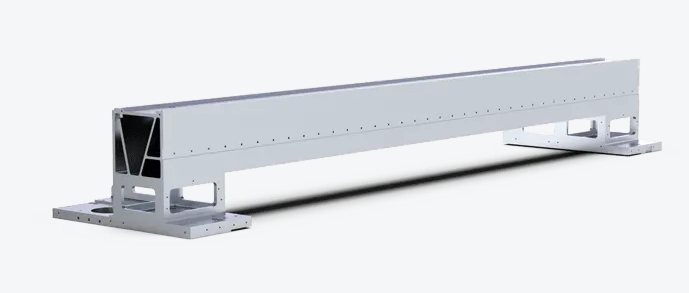

The 5th Extruded Aviation Aluminum beam
It is manufactured with aerospace standards and formed by press extrusion molding. After aging treatment,its strength can reach to very strong point.
Aviation aluminium has many advantages: good toughness,light weight,corrosion resistence,anti-oxidation and highly increase the processiong speed.

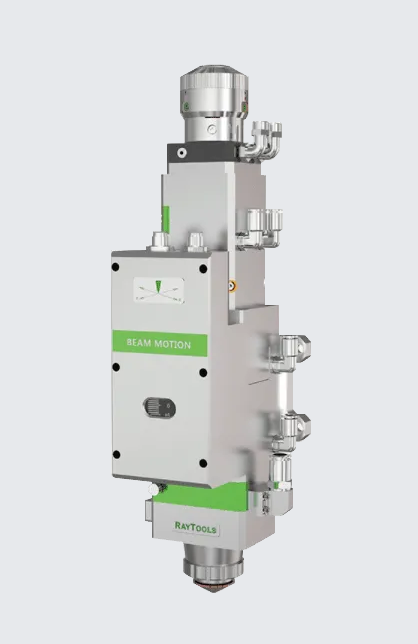

Autofocus Laser Head, Active Collision Prevention
The laser head can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently.
Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

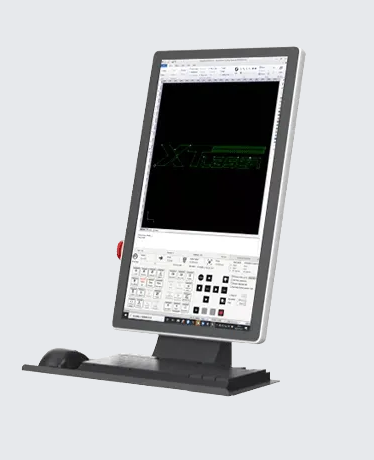

Intelligent CNC system
The laser cuttong software is easy to operate even by green hands, It support multiple graphic files include DXF, PLT, DWG, AI, G-code, IGS (tube cutting). It is compatible with other nesting software also.
Support multi-brand nesting software；
Multi language support；Auxiliary gas low pressure & cutting error alarm；Safety warning light.

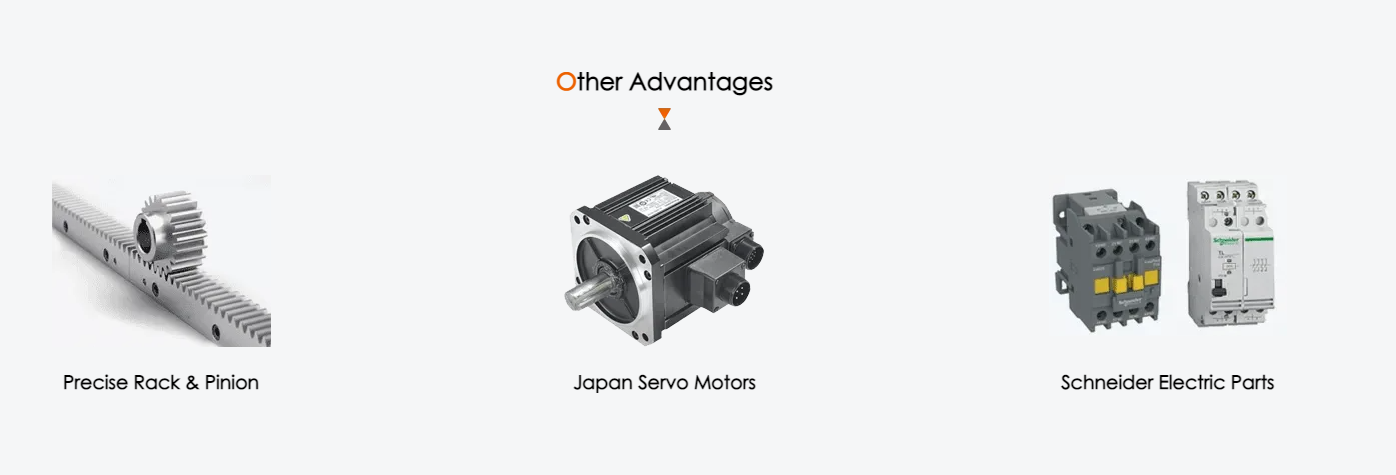

Other Advantages
We use Taiwan LAAK lead rail and gear with high quality reducer and Schneider electric parts. Use VEICHI servo motor and driver to achieve high cost-effective, also the Japan Panasonic and Yaskawa servo motor is optional.

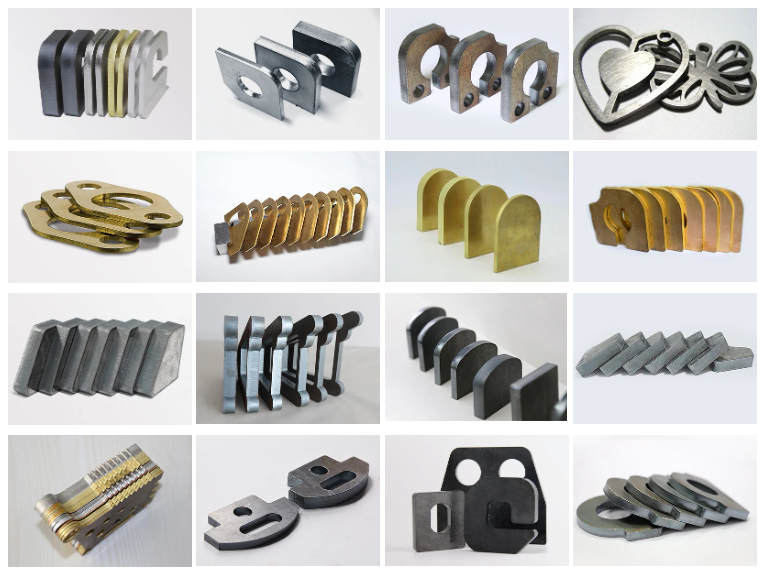

Cutting Samples
