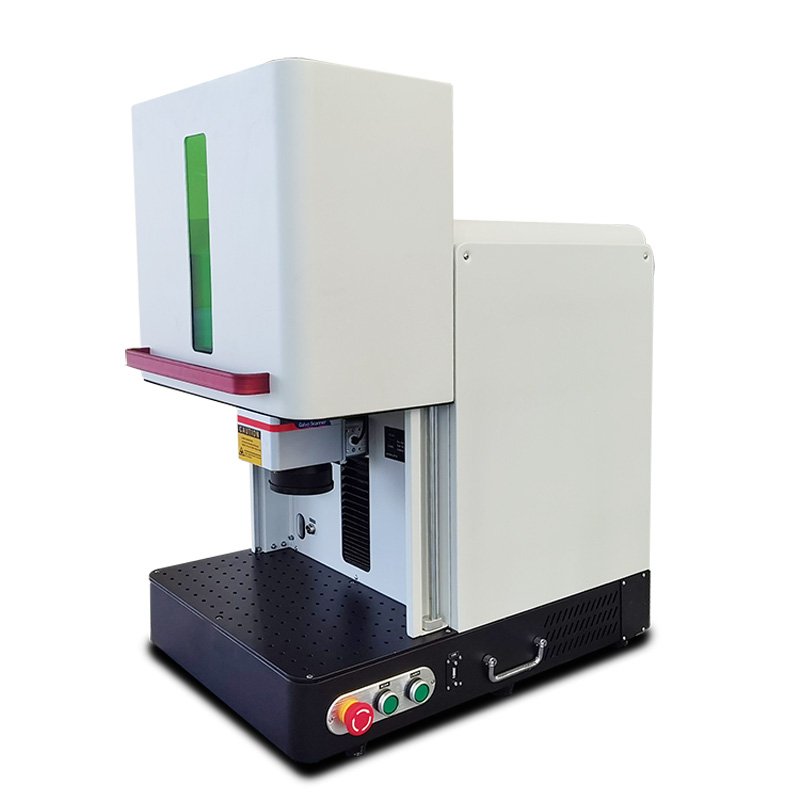

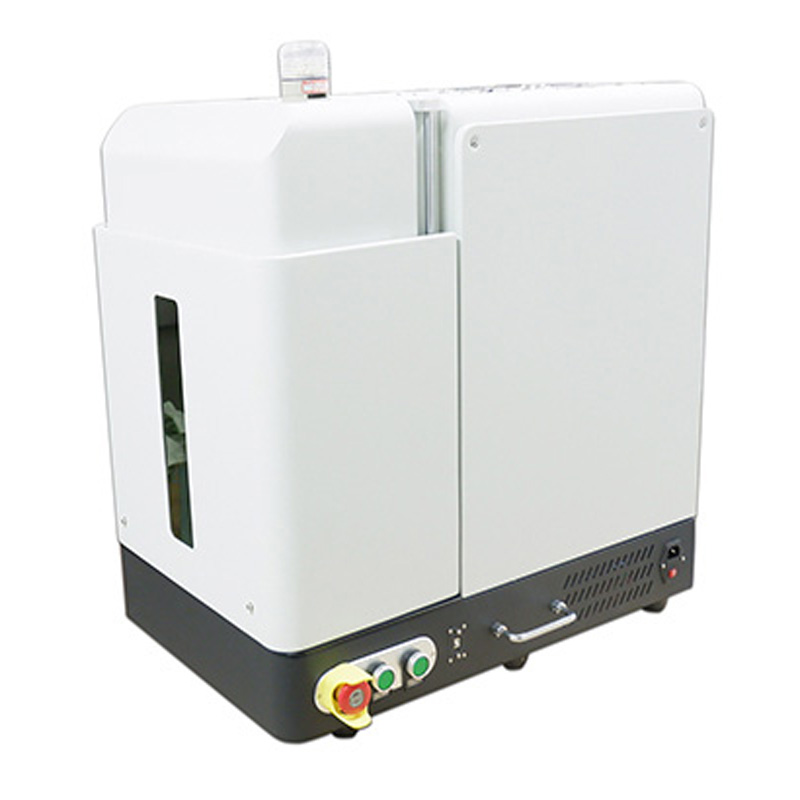

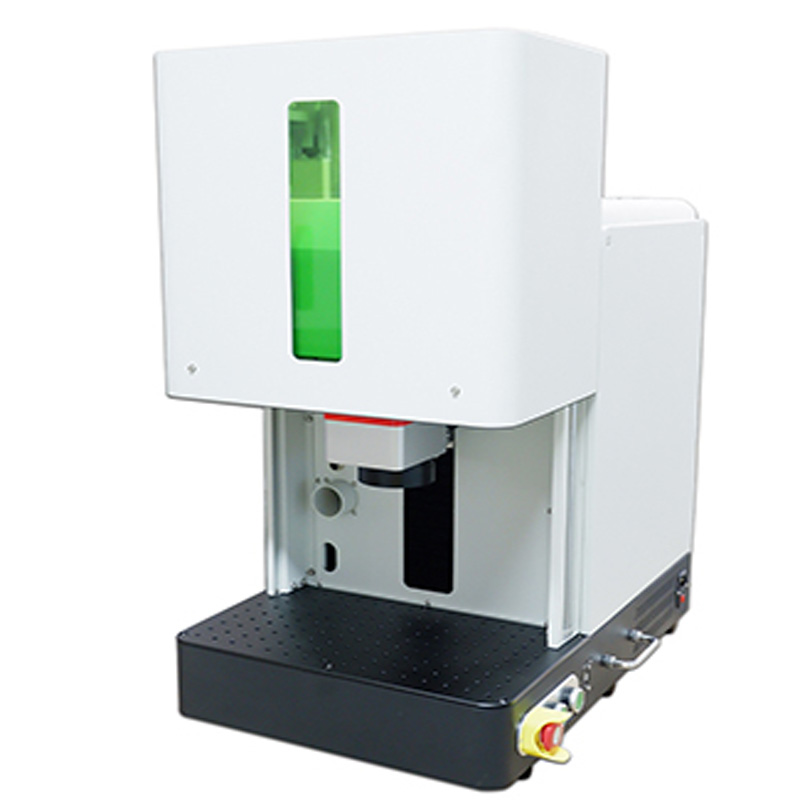

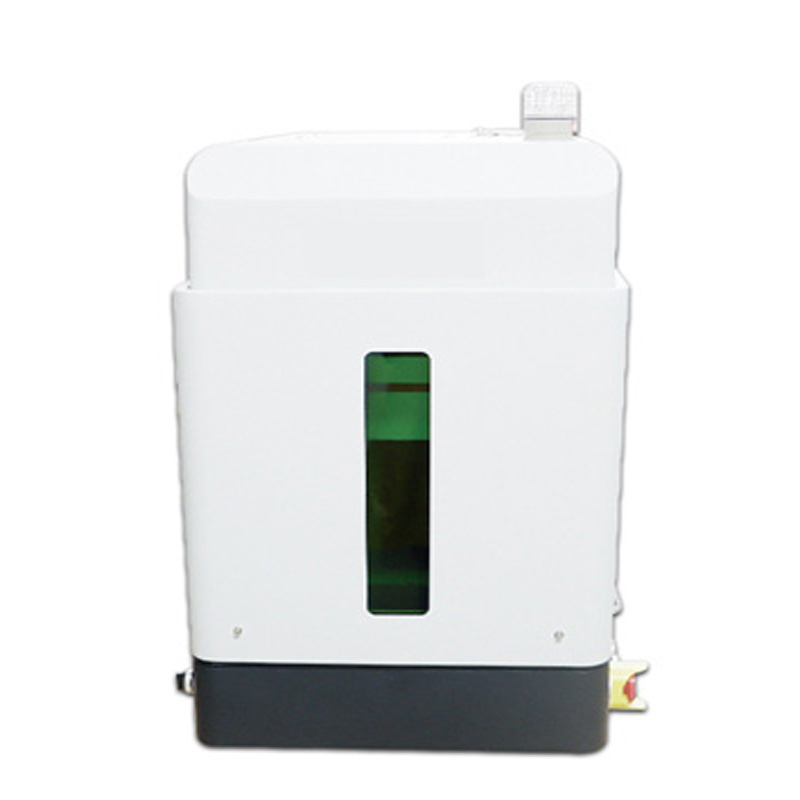

Closed Type Laser Marking Machine
Closed Type Laser Marking Machine for jewelry metal proudcts
Closed Type Laser Marking Machine for jewelry metal proudcts
Small Closed Type Laser Marking Machine Technical Data
Model
WS-C1
Laser Source
Raycus
Output Average Power
30W
Wave length
1064nm
Position resolution
1.0um
Power supply
110V/220V, 50/60HZ
Beam Quality(M2)
<1.6
Consumed power
<500W
Marking Area
110*110mm
Galvo Head
Sino-Galvo with two red light point help focus
Max speed of galvo head
7000mm/sec
Z-axis Column
Motorized Up and down z-axis
Z-axis Protection
Two limit sensor at top and bottom
Frequency
30-60KHZ
Cooling system
Air Cooling
Auxiliary focus red dot
Yes
Door
Self-locking sliding door
Window
Laser protective glass
Laser Class
Class 1
Machine dimension
70CM*43CM*67CM
Net weight
80kg
Gross weight
90kg

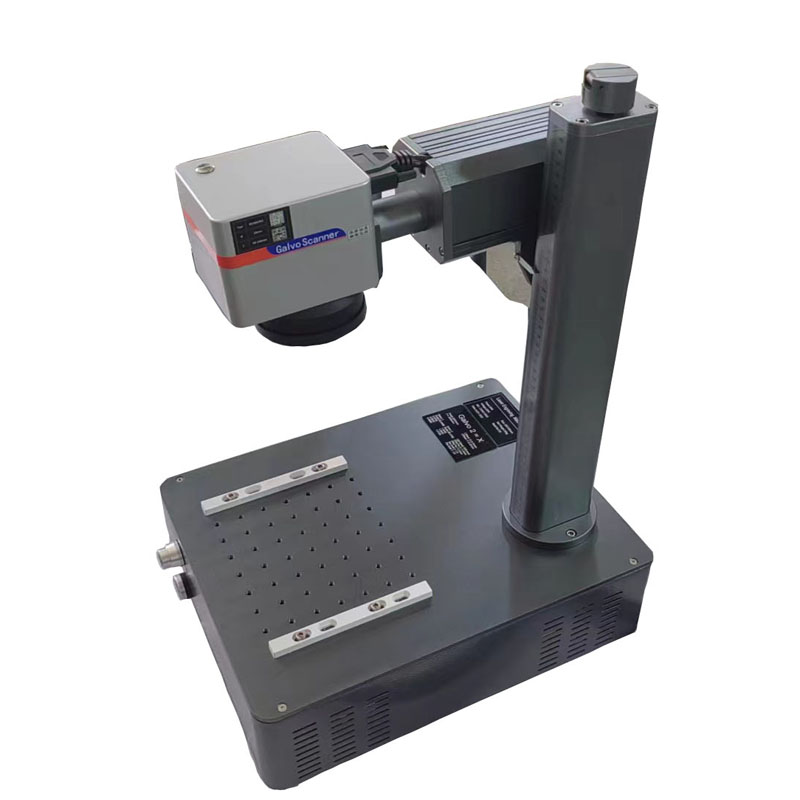

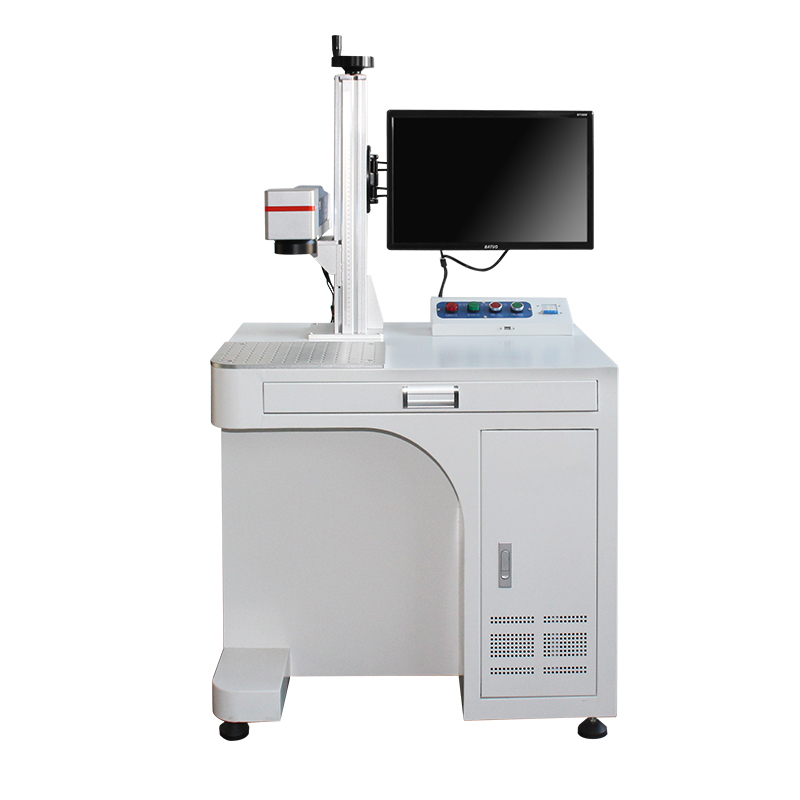

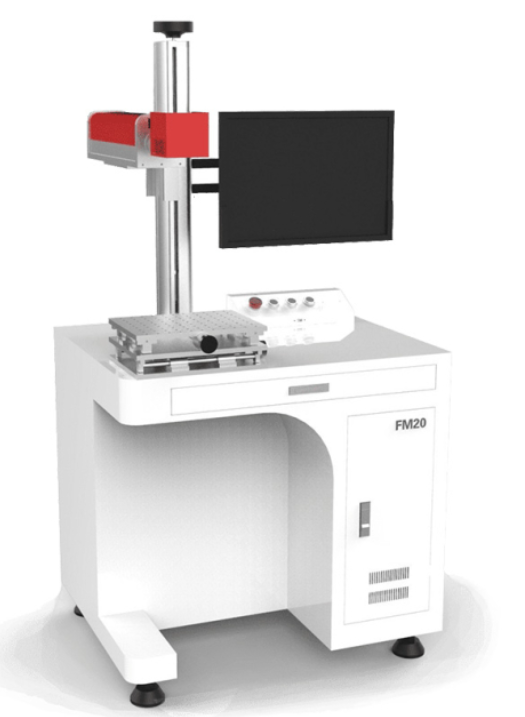

Those laser marking machines are optional

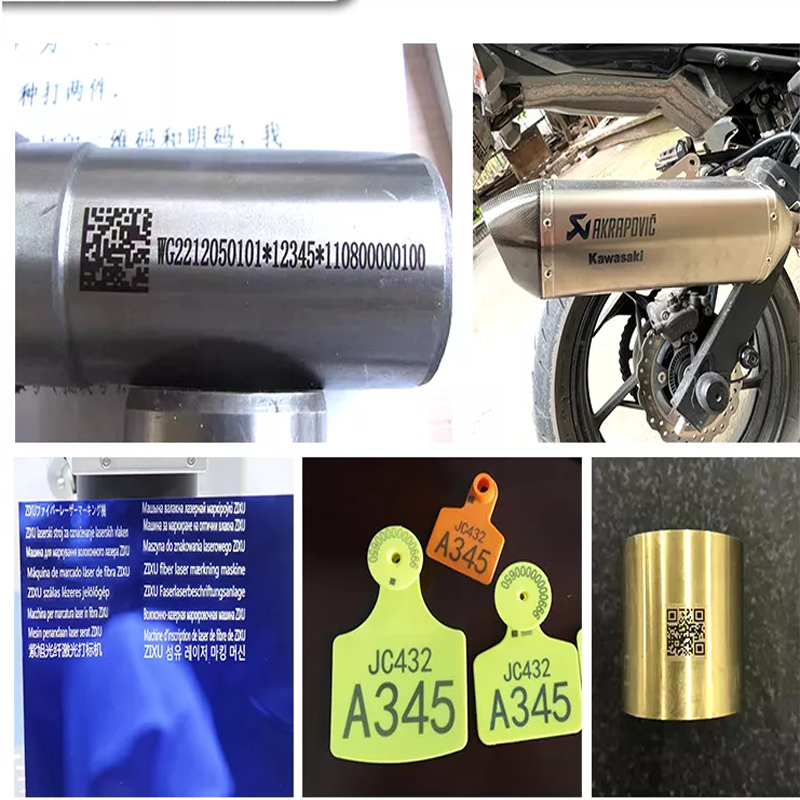

Fiber Laser Marking Machine Application
Fiber Laser Marking Machine Shipping & Delivery
