CO2 laser marking machine

CO2 laser marking machine

co2 laser marking machine for wood plastic rubber non-metal products

CO2 laser marking machine


Technical Data

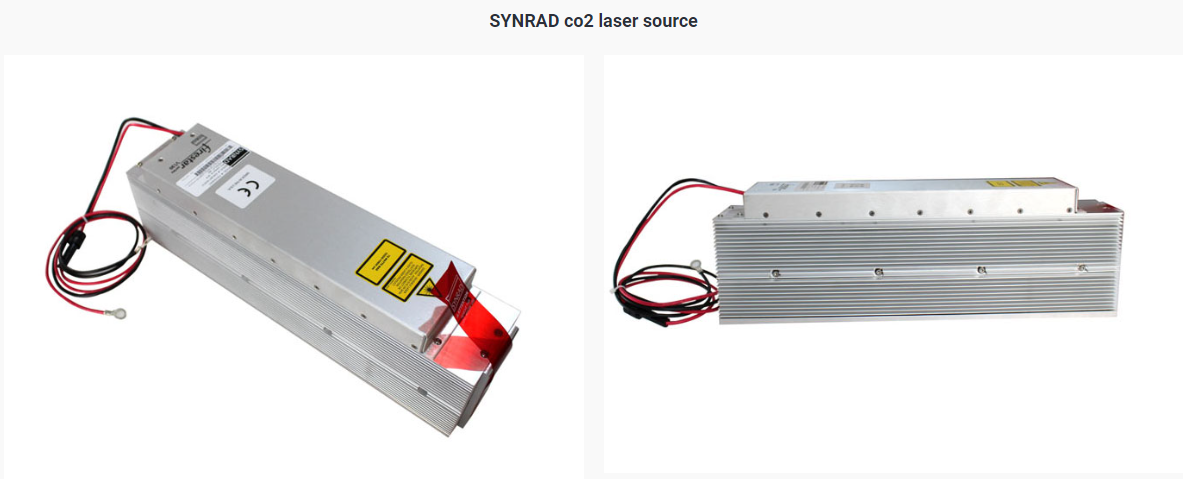

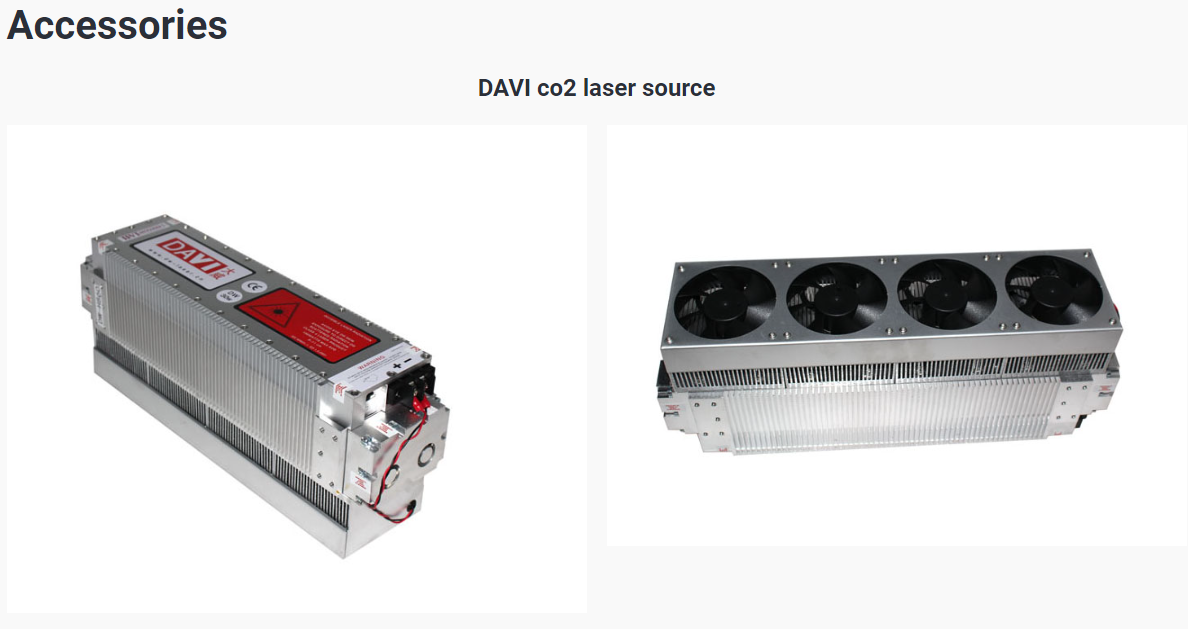

Laser Source  DAVI DAVI SYNRAD
Output Power 30W 35W 30W
Wavelength 10.6um/9.3um 10.6um/9.3um 10.6um/9.3um
Frequency 1-20KHZ 1-20KHZ 1-20KHZ
Laser Software EZCAD/Markingmate EZCAD/Markingmate EZCAD/Markingmate
Lens
110*110mm (Standard)
140*140mm/180*180mm/210*210mm/300*300mm Optional
110*110mm (Standard)
140*140mm/180*180mm/210*210mm/300*300mm Optional
110*110mm (Standard)
140*140mm/180*180mm/210*210mm/300*300mm Optional
Cooling Air cooling/Water cooling Air cooling/Water cooling Air cooling/Water cooling
Scanner 10mm/20mm Aperture 10mm/20mm Aperture 10mm/20mm Aperture
Max Marking Speed
10mm Aperture Scanner 7000mm/s
20mm Aperture Scanner 4000mm/s
Repeatability Precision ±0.01mm ±0.01mm ±0.01mm
Type of Source RF metal tube RF metal tube RF metal tube
Application PET bottle, Plastic, Wood, Paper....... PET bottle, Plastic, Wood, Paper....... PET bottle, Plastic, Wood, Paper.......
Dimension 990*400*800mm 990*400*800mm 990*400*800mm
Gross Weight 65KG 65KG 65KG
Package type Wooden Case Wooden Case Wooden Case


Co2 Sample photos
